Building a Video Upload and HLS Streaming Pipeline with Spring Boot, S3, and Lambda

Uploading a video file is easy. Turning that upload into a streamable asset — tracking state across services, deduplicating by content hash, transcoding to a browser-friendly format, and serving it securely — is where things get interesting.

I have been building stream-app, a video upload and streaming platform, to work through that problem end to end. The stack is deliberately mainstream: Spring Boot on the backend, Vue 3 on the frontend, S3 for object storage, SNS/SQS for event fan-out, and a GraalVM-native Lambda for FFmpeg transcoding. This post walks through the architecture, the contracts that keep the pieces aligned, and the sharp edges I hit along the way.

The Problem: Upload Is Not the Same as Playback

A naive approach stores the raw MP4 in a bucket and returns a download URL. That works for file delivery, but browsers want HTTP Live Streaming (HLS) for adaptive, seekable playback. HLS means a manifest file (index.m3u8) that references one or more media segments — and those segments must be reachable by the player after the manifest loads.

Meanwhile, the backend cannot afford to proxy multi-gigabyte uploads through itself. The standard pattern is presigned URLs: the API creates metadata in a database, hands the client a time-limited PUT URL, and the browser uploads directly to object storage.

That split — metadata in PostgreSQL, bytes in S3, processing in Lambda, playback in the browser — needs explicit contracts for object keys, status transitions, and message shapes. Without them, the upload bucket, transcode function, and frontend player drift apart quickly.

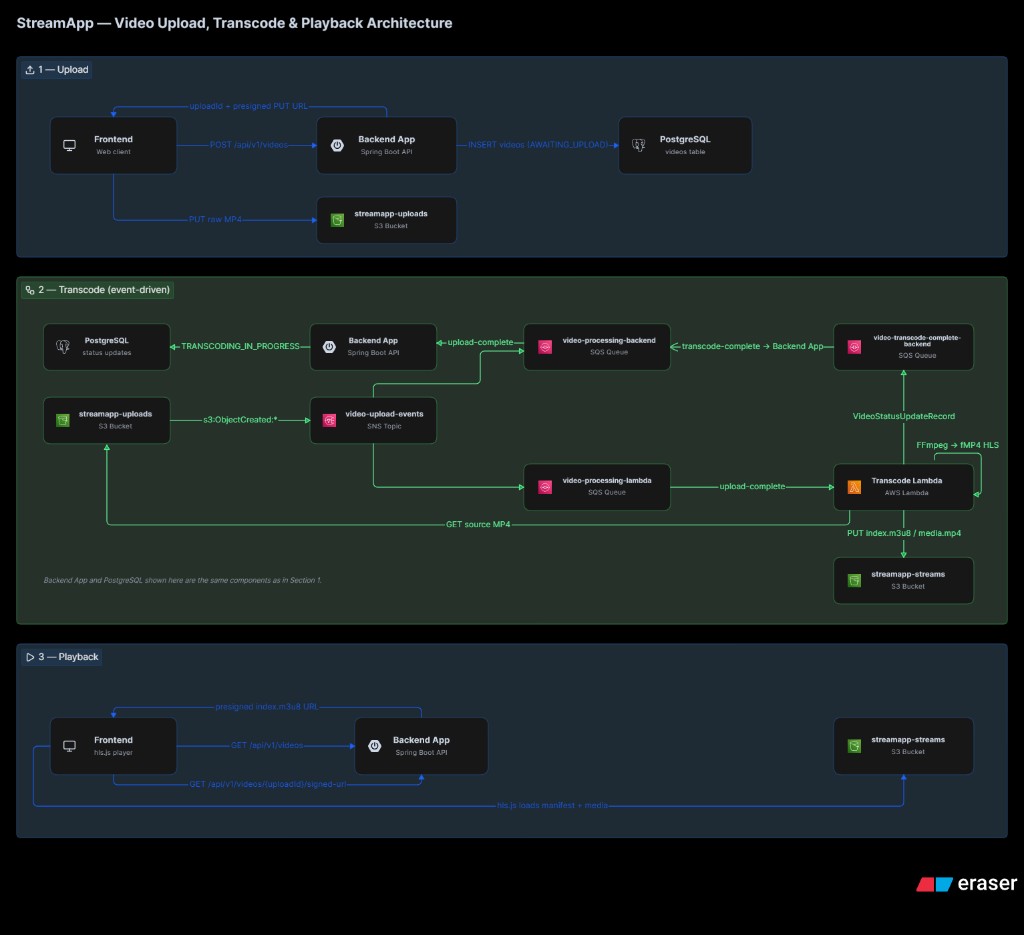

End-to-End Architecture

The platform has three cooperating flows: upload, transcode, and playback.

Each upload gets a UUID uploadId that threads through every layer: database primary key, S3 prefix, SQS messages, and frontend playlist entries. Keeping that identifier stable and unique is the spine of the design.

Shared Object-Key Conventions

The most important cross-service contract is where files live in S3. I centralized this in a single utility class used by the backend, Lambda, and tests:

public final class S3ObjectKeys {

    public static final String PLAYLIST_FILE = "index.m3u8";
    public static final String MEDIA_FILE = "media.mp4";

    public static String uploadObjectKey(UUID uploadId, String fileName) {
        return uploadId + "/" + sanitizeFileName(fileName);
    }

    public static String streamPlaylistKey(UUID uploadId) {
        return uploadId + "/" + PLAYLIST_FILE;
    }

    public static String streamMediaKey(UUID uploadId) {
        return uploadId + "/" + MEDIA_FILE;
    }
}

Two buckets separate concerns: uploads are write-once client PUTs; streams are read-heavy playback assets produced by transcoding. Fixed output filenames (index.m3u8, media.mp4) mean the backend never needs extra database columns to locate HLS output — the key is always derivable from uploadId.

Upload Flow: Presigned PUT and SHA-256 Deduplication

The upload API accepts a filename and a client-computed SHA-256 hash. The hash serves two purposes: content deduplication (reject duplicate uploads with 409 Conflict) and integrity verification before the expensive transcode step.

@Transactional(
        propagation = Propagation.REQUIRES_NEW,
        rollbackFor = DuplicateVideoUploadException.class)
public SignedUrlCreatedRecord createSignedUploadUrl(String fileName, String sha256Hex) {
    var uploadId = UUID.randomUUID();
    var shaHex = HexFormat.of().parseHex(sha256Hex);

    try {
        videoRepository.createPendingUploadEntry(uploadId, fileName, shaHex);
    } catch (DuplicateKeyException e) {
        throw new DuplicateVideoUploadException(fileName);
    }

    var signedUrl = s3Service.createSignedPutUrl(uploadId, fileName);
    return new SignedUrlCreatedRecord(uploadId, signedUrl, fileName);
}

The database row starts in AWAITING_UPLOAD. Only after the client finishes the S3 PUT does an event move it forward. If the client abandons the upload, a scheduled cleanup job marks stale rows as FAILED after a configurable TTL (default 30 minutes).

On the frontend, each file runs through an independent state machine inside a Vue composable:

1. Hashing — SHA-256 via Web Crypto API
2. Creating — POST /api/v1/videos for the presigned URL
3. Uploading — PUT to S3 with byte-level progress via XHR
4. Complete or Failed — per-file result with retry from hashing

async function runUpload(id: string): Promise<void> {
  const item = getItem(id)
  if (!item) return

  try {
    updateItem(id, { phase: 'hashing', error: null, failedAtPhase: null })
    const digest = await sha256Hex(item.file)
    updateItem(id, { sha256: digest, phase: 'creating' })

    const signed = await createSignedUpload({
      fileName: item.file.name,
      sha256Hex: digest,
    })

    updateItem(id, { phase: 'uploading', uploadProgress: 0 })
    await putFileWithProgress(signed.signedUrl, item.file, (percent) => {
      updateItem(id, { uploadProgress: percent })
    })
    // ...
  } catch (error) {
    failItem(id, currentPhase, error)
  }
}

Multiple files upload in parallel; failures are isolated per queue item. API errors are parsed from RFC 7807 ProblemDetail JSON so the UI can show the backend's detail field instead of a generic HTTP status.

Event-Driven Transcoding

When the raw MP4 lands in streamapp-uploads, S3 publishes an ObjectCreated event to an SNS topic. Two SQS queues subscribe to that topic:

Fan-out through SNS means the backend and Lambda react to the same upload event without either service calling the other directly. The backend updates status; the Lambda does the heavy work.

After transcoding, the Lambda publishes a plain JSON message to video-transcode-complete-backend:

{
  "uploadId": "550e8400-e29b-41d4-a716-446655440000",
  "status": "PLAY_READY"
}

The backend listener transitions TRANSCODING_IN_PROGRESS → PLAY_READY (or FAILED on error). Conditional updates in the repository prevent stale messages from overwriting a terminal state.

FFmpeg: fMP4 HLS with a Single Media File

I chose fragmented MP4 HLS with the single_file flag. Instead of dozens of .ts or .m4s segment files, FFmpeg writes one media.mp4 and an index.m3u8 that references it relatively:

public static List<String> build(String ffmpegPath, Path localInput, Path outputDir) {
    return List.of(
            ffmpegPath, "-y", "-i", localInput.toString(),
            "-vcodec", "libx264", "-preset", "fast", "-crf", "22",
            "-c:a", "aac", "-b:a", "128k",
            "-f", "hls",
            "-hls_time", "4",
            "-hls_playlist_type", "vod",
            "-hls_segment_type", "fmp4",
            "-hls_flags", "single_file",
            "-hls_segment_filename", localMediaFile.toString(),
            localManifest.toString());
}

This simplifies S3 layout (two objects per video instead of N+1) and makes local development easier. The trade-off is less granular CDN caching — acceptable for an early-stage VOD platform, but something to revisit if segment-level caching becomes important at scale.

The Lambda runs as a Spring Cloud Function (Consumer<byte[]>) compiled to a GraalVM native image. One lesson from that path: AWS's SQSEvent serializer does not populate records reliably in native images, so the handler parses raw SQS JSON with Spring Jackson instead.

Playback: hls.js and the Presigned-URL Trap

The stream tab lists videos from GET /api/v1/videos and fetches a presigned GET URL for index.m3u8 when the user selects a PLAY_READY video. hls.js loads the manifest, then requests media.mp4 using a relative path.

Here is the catch: a presigned URL covers one S3 object. The manifest request carries the signature query string, but the relative media.mp4 fetch does not. In production, this means CloudFront signed cookies scoped to /{uploadId}/*, or a backend media proxy — not a single presigned manifest URL on a private bucket.

For local development I use Floci, an S3-compatible emulator running in Docker alongside PostgreSQL. An init script provisions the SNS topic, SQS queues, and S3→SNS notification — mirroring what AWS would provide in a real account.

The frontend polls the video list every four seconds while any video is AWAITING_UPLOAD or TRANSCODING_IN_PROGRESS, then stops when all items reach a terminal state (PLAY_READY or FAILED). That keeps the playlist fresh without websockets, which is fine for a dev/demo tool.

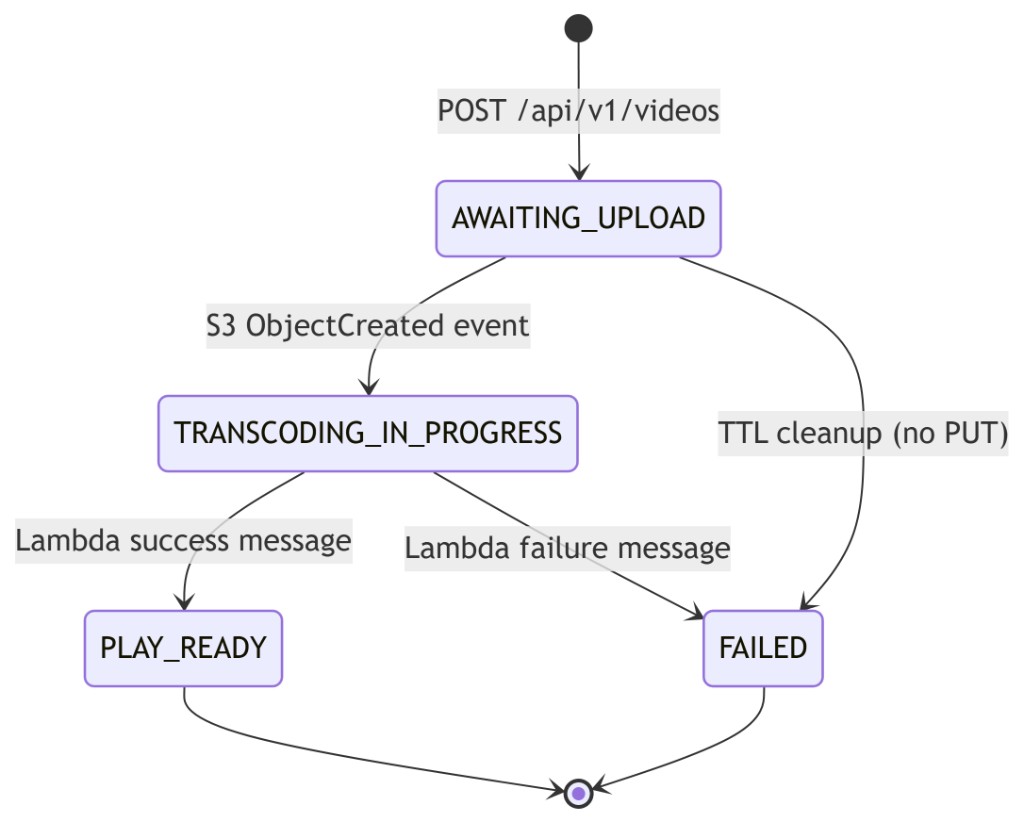

Video Status as a State Machine

Every video row tracks one of four statuses:

The signed stream URL endpoint enforces this: requesting a manifest for a non-ready video returns 409 Conflict with a video-not-ready problem type, so the frontend never wastes a presign call on a video still transcoding.

Local Development Stack

Getting the full pipeline running locally requires a specific startup order:

# 1. PostgreSQL
docker compose -f docker/infra/db/docker-compose.yaml up -d

# 2. Floci (local S3 + SNS/SQS init)
docker compose -f docker/infra/aws/docker-compose.yaml up -d

# 3. Backend (creates S3 buckets on startup)
cd backend && ./mvnw spring-boot:run -Dspring-boot.run.profiles=dev

# 4. Re-run AWS init if S3 notification was skipped
AWS_ENDPOINT_URL=http://localhost:4566 sh docker/infra/aws/init-aws-resources.sh

# 5. Frontend
cd frontend && npm install && npm run dev

The backend uses jOOQ with code generation driven by Testcontainers — Flyway migrations run against a real PostgreSQL 18 container at build time, not an H2 simulation. That matters because the videos table has a unique index on a BYTEA SHA-256 column, which H2 cannot model faithfully.

Integration tests spin up PostgreSQL and Floci together, bootstrap SNS/SQS/S3 resources in-process, and verify the full upload → listener → status transition path without mocking AWS.

Trade-offs and What Comes Next

What works well:

• Presigned uploads keep the API out of the data path for large files
• SNS fan-out decouples status tracking from transcoding
• Shared S3ObjectKeys prevents key-layout drift across services
• SHA-256 deduplication catches re-uploads before transcode cost
• RFC 7807 errors give the frontend structured, human-readable failure messages

What I would change or add:

• Authentication — everything is open today; production needs auth on upload and playback
• HLS segment auth — CloudFront signed cookies before shipping to a private bucket
• Adaptive bitrate — current FFmpeg settings produce a single quality level; multi-rendition HLS is the next step
• Websockets or SSE — replace polling for transcode status in the UI
• Dead-letter queues — SQS DLQs for poison messages in the event pipeline

Wrapping Up

Building a video platform is less about any single technology choice and more about contracts: stable object keys, explicit status transitions, and message shapes that every service agrees on before you write the first listener.

stream-app is still early — no auth, single-bitrate HLS, presigned-manifest playback that needs CloudFront for production — but the skeleton is sound. Presigned S3 uploads, event-driven transcoding, and a Vue frontend with a per-file upload state machine cover the hard parts of getting from "user picked an MP4" to "browser is playing HLS."

If you are starting a similar project, nail the object-key layout and status enum first. Everything else — FFmpeg flags, queue names, frontend polling — hangs off those two decisions.
